Solar ACDB

Solar ACDB

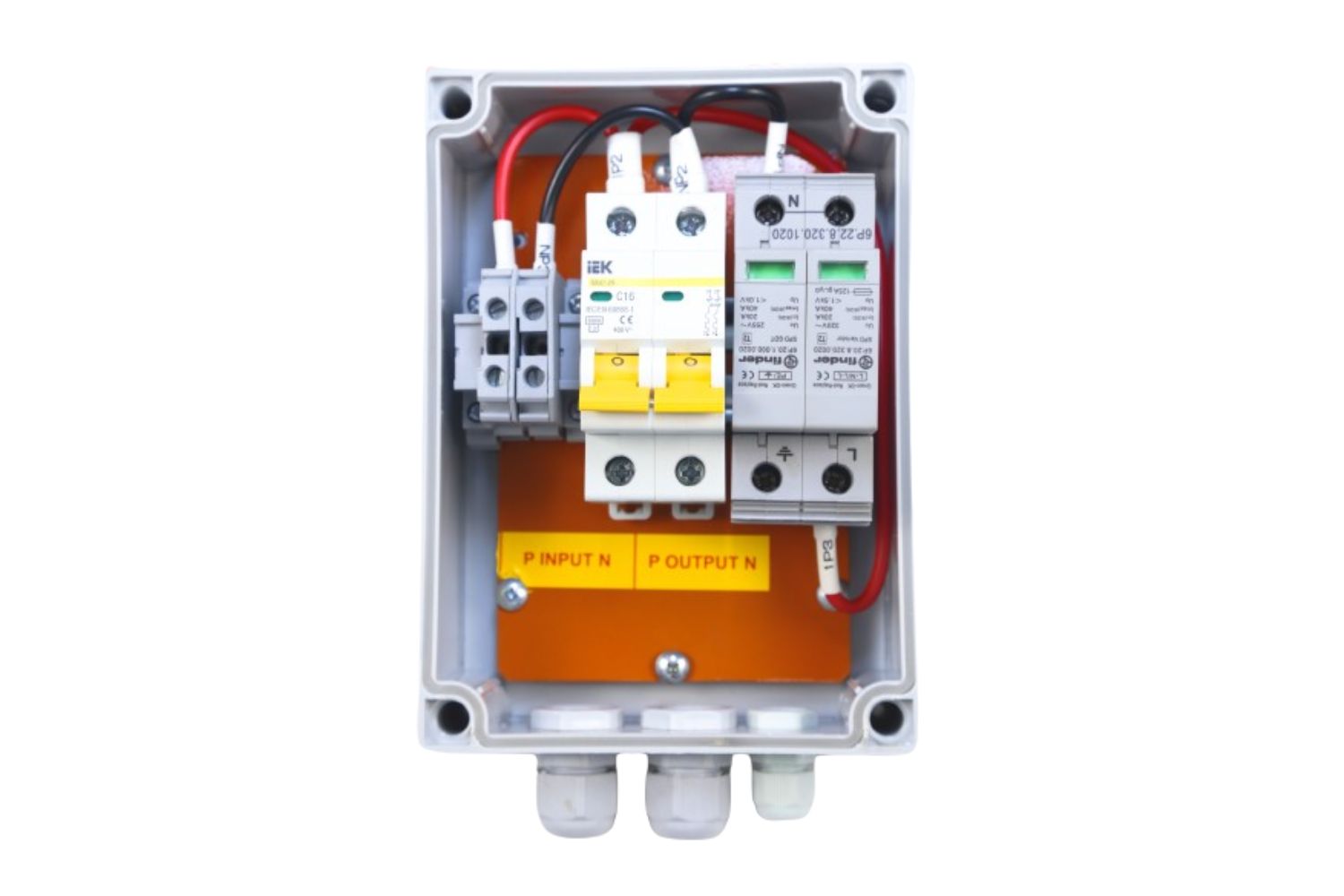

The Geesys Solar AC Distribution Box (ACDB) for 5 kWp solar systems is a critical component in solar power installations. It ensures safe and efficient distribution of alternating current (AC) generated by the solar inverter to various loads or the utility grid. Designed with high-quality materials and advanced safety features, the ACDB provides robust protection for the solar system and connected devices.

• Power Distribution:
  • Efficiently routes AC power from the solar inverter to connected loads or the grid.
  • Supports balanced load distribution and organized wiring for enhanced system reliability.
• System Protection:
  • Equipped with Miniature Circuit Breakers (MCBs) or Molded Case Circuit Breakers (MCCBs) to safeguard against overcurrent and short circuits.
  • Integrated Surge Protection Devices (SPDs) protect the system from voltage spikes caused by lightning or grid fluctuations.
• Isolation Mechanism:
  • Includes isolators or disconnect switches for safe maintenance and system disconnection during emergencies.
  • Prevents backfeed into the grid, ensuring compliance with safety regulations.
• Monitoring & Metering:
  • Comes with an energy meter to monitor the AC output, helping users track system performance and energy production.
  • Optional advanced digital monitoring capabilities for real-time tracking and remote access.
• Durable Construction:
  • Sturdy metal enclosure designed to meet IP65 standards, offering protection against dust, moisture, and environmental elements.
  • Suitable for both indoor and outdoor installations, ensuring longevity in diverse conditions.
• Grounding & Earthing:
  • Integrated grounding provisions to dissipate fault currents safely and minimize the risk of electrical shocks.
• Capacity:
  • Specifically designed to handle the load requirements of a 5 kWp solar system, ensuring optimal performance and safety.
